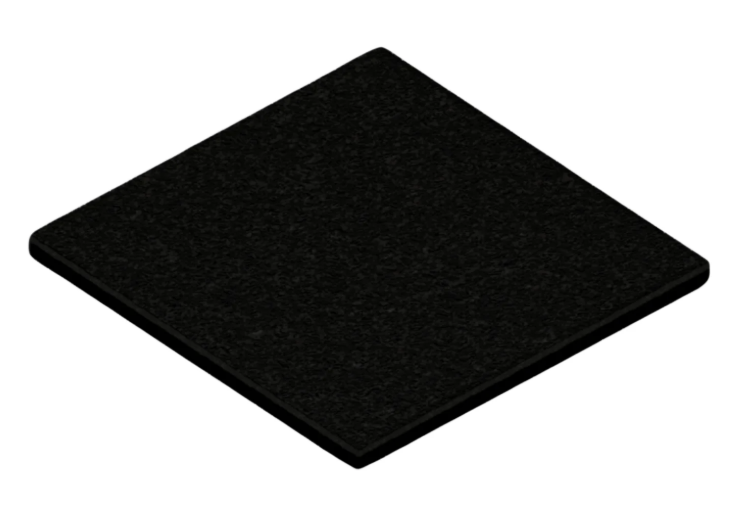

Pliteq GenieMat DBL 40dB 1220mm x 1220mm x 10mm
Dual-Layer Acoustic Underlay for Impact Noise Reduction
Pliteq GenieMat DBL is a dual-layer acoustic underlay designed to reduce impact noise through floors. It is commonly used in flats, apartments, housing conversions, refurbishments and commercial buildings where improved floor sound insulation is required.
The range includes DBL10 10mm / 40dB and DBL15 15mm / 46dB options, giving you a choice between a lower-build-up acoustic mat and a thicker, higher-performance option.
Each sheet measures 1220mm x 1220mm and covers approximately 1.49m². The mat is made from recycled rubber material and is designed to sit below suitable floor finishes as part of a complete acoustic floor build-up.
GenieMat DBL can be used beneath carpet, laminate, engineered timber, LVT and tiled floor finishes, subject to the full floor specification and manufacturer guidance. It helps reduce footfall noise, vibration transfer and impact sound passing through the floor structure.
For best results, install with correct perimeter isolation, joint treatment and control of flanking noise paths.
Key features
- Dual-layer acoustic floor underlay
- Helps reduce impact noise from footsteps and movement
- Suitable for domestic and commercial floor soundproofing projects
- Available in 10mm / 40dB and 15mm / 46dB versions
- Made from recycled rubber acoustic material
- Suitable below a range of floor finishes, subject to system design
- Useful for flats, apartments, conversions and refurbishment projects
- Each sheet covers approximately 1.49m²
Technical specifications
| Specification | DBL10 | DBL15 |
|---|---|---|
| Product | GenieMat DBL10 | GenieMat DBL15 |
| Thickness | 10mm | 15mm |
| Size | 1220mm x 1220mm | 1220mm x 1220mm |
| Coverage | approx. 1.49m² | approx. 1.49m² |
| Approx. weight | 14kg per sheet | check supplier data |
| Acoustic rating | 40dB | 46dB |
| Format | Sheet | Sheet |
| Application | Acoustic floor underlay | Acoustic floor underlay |
Insulation UK’s product page confirms the DBL10 format as 1220mm x 1220mm x 10mm, 1.49m² coverage, 14kg sheet weight, and ΔLn,w 40dB.
Installation notes
Lay GenieMat DBL over a clean, dry and level subfloor. Sheets should be tightly butted together, with joints taped where required by the system specification.
Use perimeter isolation around the room to prevent the finished floor layer touching walls, skirtings or fixed structures. This helps reduce flanking noise and stops impact vibration bypassing the acoustic mat.
Do not mechanically fix through the acoustic layer unless the full system design allows it, as fixings can reduce acoustic performance.
FAQ
What is Pliteq GenieMat DBL used for?
Pliteq GenieMat DBL is used as an acoustic floor underlay to reduce impact noise from footsteps, movement and vibration through floor structures.
What is the difference between DBL10 and DBL15?
DBL10 is the 10mm / 40dB version. DBL15 is the thicker 15mm / 46dB version for higher acoustic performance.
How big is each sheet?
Each sheet is 1220mm x 1220mm, covering approximately 1.49m².
Can it be used in flats?
Yes. It is suitable for flats, apartments, conversions and other floor soundproofing projects where impact noise reduction is required.
Do I need perimeter strips?
Yes. Perimeter isolation is strongly recommended to reduce flanking noise through walls, skirtings and surrounding structures.
