M20 Rubber Sheets

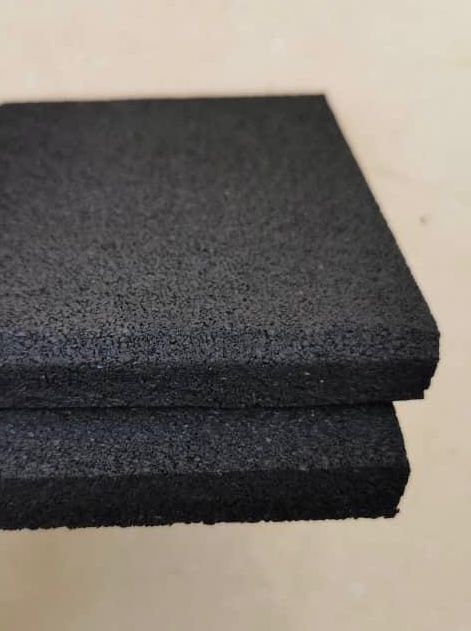

M20 / SM20 Acoustic Rubber Panel 1000mm x 1000mm x 20mm
M20 / SM20 Acoustic Rubber Panel is a dense 20mm rubber soundproofing panel used in wall and floor acoustic systems. It is designed to add mass and help reduce vibration transfer when installed as part of a complete soundproofing build-up.
Each panel measures 1000mm x 1000mm and covers 1m². The dense rubber construction makes it useful where acoustic mass is needed without adding excessive build-up depth.
This panel is commonly used for party walls, separating walls, floors, studios, media rooms, home offices, flats and domestic soundproofing upgrades.
This product is not a complete soundproofing system on its own. For best results, it should be used with the correct supporting materials, such as acoustic plasterboard, acoustic mineral wool, acoustic sealant, suitable adhesive and proper perimeter detailing.
Product Details
Product: M20 / SM20 Acoustic Rubber Panel
Size: 1000mm x 1000mm
Thickness: 20mm
Coverage: 1m² per panel
Approximate weight: 18kg per panel
Material: Dense recycled rubber
Application: Wall and floor soundproofing systems
Selling unit: Single panel
Key Benefits
- Dense 20mm acoustic rubber panel for wall and floor systems.
- Adds mass to soundproofing build-ups.
- Helps reduce vibration transfer through walls and floors.
- Useful where space loss needs to be kept low.
- Can be used behind acoustic plasterboard in wall systems.
- Can be used in suitable floor soundproofing build-ups.
- Suitable for party walls, flats, studios, media rooms and home offices.
- Can be cut on site with suitable tools.
- Works as part of a full acoustic system with insulation, board layers and sealing.
Typical Uses
M20 / SM20 Acoustic Rubber Panels are commonly used for:
- Party wall soundproofing
- Wall lining upgrades
- Floor soundproofing
- Studio construction
- Music rooms
- Cinema rooms
- Home offices
- Flats and apartments
- Domestic noise reduction projects
They are often used where a dense acoustic layer is required without adding too much extra depth to the wall or floor build-up.
Recommended System Products
For a proper installation, this panel is normally used with other soundproofing materials. We also supply the key products needed to complete the build-up, including:
- Acoustic plasterboard
- SPBoard acoustic boards
- Acoustic mineral wool
- Acoustic sealant
- Suitable contact adhesive or spray adhesive
- Perimeter isolation strips or acoustic tapes
- Resilient bars, acoustic clips and channels
- Tecsound and other acoustic membranes
Using the correct supporting products is important. Gaps, unsealed edges, weak existing structures, poor fixing or rigid contact around the perimeter can reduce the performance of the full soundproofing system.
Wall Installation Notes
The existing wall should be dry, stable, clean and suitable to carry the additional weight before installation. Panels can be cut to size on site where required.
Where used on walls, the panel is normally installed as part of a layered acoustic lining, with acoustic plasterboard or soundproofing board fitted over the front.
Joints should be tight, edges should be sealed, and the final board layer should be installed according to the project specification.
Do not rely on adhesive alone unless the installation method and substrate are suitable. Mechanical fixing may be required depending on the wall type, panel weight and full system design.
Floor Installation Notes
Where used in floor systems, the product should only be installed as part of a suitable acoustic floor build-up.
The existing floor should be stable, level and free from loose boards, gaps or major defects before installation.
Perimeter isolation is important. The acoustic layer and floor finish should not make rigid contact with surrounding walls, skirting boards, pipes or structural elements.
Important Information
M20 / SM20 Acoustic Rubber Panels are acoustic system components and should not be treated as a guaranteed standalone soundproofing solution.
Final performance depends on the full wall or floor construction, existing structure, board layers, insulation, sealing, installation quality and any flanking noise paths.
If you are unsure whether this product is right for your wall or floor build-up, contact us before ordering and we can help you choose the correct materials.
