Isomass Isocheck Acoustic Deep Batten 75
Isomass Isocheck Acoustic Deep Batten 75

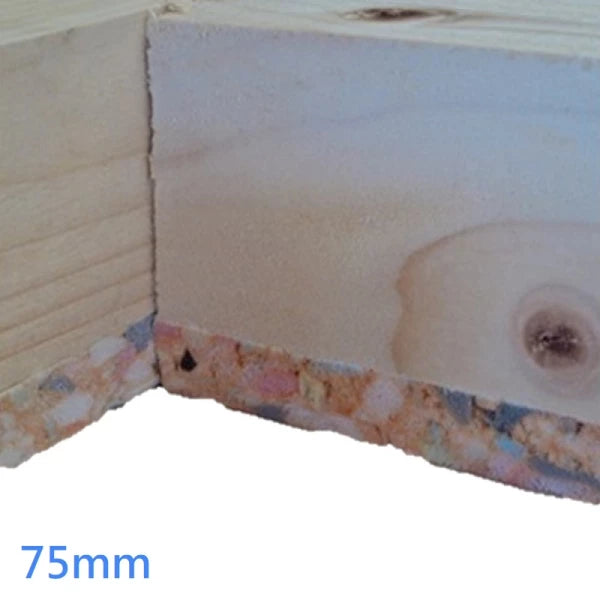

Isomass Isocheck Acoustic Deep Batten 75 is a resilient acoustic floor batten used in timber floor soundproofing systems. It is designed to create a raised acoustic floor layer while helping reduce direct vibration transfer through the floor structure.
The batten is made from a softwood timber batten bonded to an ACF acoustic resilient layer. This creates a stable support for a floating chipboard floor deck while adding acoustic separation below the floor surface.
The 75mm overall depth makes this product useful where a deeper floor build-up is required. It can help create space for services, pipework or underfloor heating beneath the floor deck, depending on the project design.
Isocheck Deep Batten 75 is commonly used in new build projects, refurbishments, conversions, timber floor upgrades, flats, apartments and acoustic flooring systems where a deeper resilient batten system is needed.
Product Details
Brand: Isomass
Range: Isocheck
Product: Acoustic Deep Batten 75
Size: 1800mm x 45mm x 75mm
Construction: Softwood batten bonded to ACF acoustic resilient layer
Application: Timber floor acoustic systems
Selling unit: Each
Use with: Chipboard deck, flanking band, D3 adhesive, acoustic sealant and suitable insulation
Key Benefits
Resilient acoustic batten for timber floor soundproofing systems.
75mm deep profile for raised acoustic floor build-ups.
Helps reduce direct vibration transfer through the floor structure.
Can help create space for services or underfloor heating beneath the floor deck.
Suitable for floating chipboard floor systems.
Made from softwood timber bonded to an acoustic resilient layer.
Useful for refurbishments, conversions and new floor installations.
Suitable for domestic and commercial acoustic flooring projects.
Can be used with acoustic mineral wool, flanking strips, adhesive and acoustic sealant as part of a full system.
Typical Uses
Isomass Isocheck Acoustic Deep Batten 75 is commonly used for timber floor soundproofing, flat and apartment upgrades, refurbishment projects, conversions, acoustic floor systems, raised floating floors, underfloor heating build-ups and projects where a service void is required beneath the floor deck.
It is suitable for use where the floor build-up needs both support and acoustic separation. It should be used as part of a complete acoustic flooring system rather than as a standalone soundproofing product.
Recommended System Products
For best results, Isocheck Deep Batten 75 should be used with the correct supporting products. We also supply the main materials needed to complete this type of acoustic floor build-up, including:
Isocheck universal angled flanking band.
Isocheck D3 adhesive for tongue-and-groove chipboard joints.
Acoustic sealant for edges, gaps and service penetrations.
Acoustic mineral wool for use within the wider floor or ceiling build-up.
Chipboard deck boards, depending on the project specification.
Acoustic ceiling products where the ceiling below also needs treatment.
Resilient bars, acoustic clips and acoustic plasterboard for full floor and ceiling systems.
Using the correct supporting products is important. Rigid contact at the perimeter, unsealed gaps, poor board jointing, missing insulation or untreated flanking paths can reduce the performance of the full system.
Installation Notes
The existing floor structure should be dry, level, stable and suitable before installation. Any loose boards, raised fixings, damaged sections, large gaps or service penetrations should be dealt with before the battens are installed.
Install the battens in accordance with the project specification and manufacturer guidance. The floating floor deck should be installed over the battens using suitable board joint adhesive where required.
A suitable acoustic flanking band or perimeter isolation strip should be fitted around the room edges so the floating floor deck does not make rigid contact with surrounding walls, skirting boards, pipework or structural elements.
Avoid creating rigid bridges through the acoustic layer unless the system specifically requires it. Gaps, edges and service penetrations should be sealed carefully with acoustic sealant.
Important Information
Isocheck Deep Batten 75 is an acoustic floor system component and should not be treated as a guaranteed standalone soundproofing solution. Final performance depends on the full floor and ceiling construction, the existing structure, board layers, insulation, perimeter isolation, sealing, workmanship and any flanking noise paths.
If you are unsure whether Deep Batten 75 is right for your floor build-up, contact us before ordering and we can help you choose the correct products.
