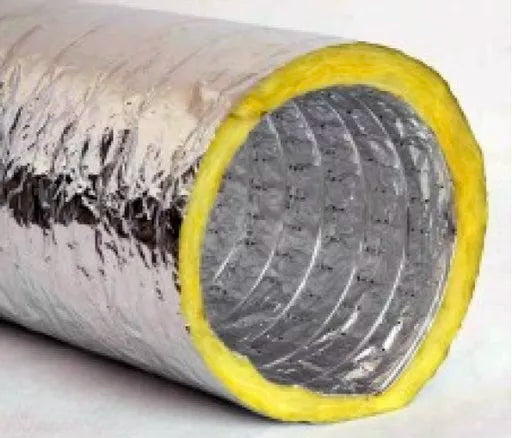

Acoustic Insulated Ducting 10m

Soundproofing King supplies flexible aluminium acoustic ducting with insulation to reduce airflow and fan noise. An interliner separates the perforated inner duct from the fibreglass insulation, helping keep fibres out of the air stream. Use on both inlet and outlet connections of the ventilation unit for best results.

• Listed purchase size: 100 mm diameter, 10 m long
• Compressed length: 1.2 m; individually boxed
• Inner layer: perforated Aliflex aluminium
• Outer jacket: aluminium/polyester with fibreglass yarn
• Insulation: 25 mm fibreglass, 16 kg/m³
• Operating temperatures: −30 to +140 °C
• Maximum air speed: 30 m/s
• Maximum positive pressure: 2000 Pa
• Finish: metallic silver

Connects to round or oval ductwork and can be cut and fitted without specialist tools. The product range spans diameters of 100–500 mm; ask Soundproofing King about other sizes.

Check before ordering: match the 100 mm duct size to your ventilation connections and plan the required inlet and outlet lengths.
